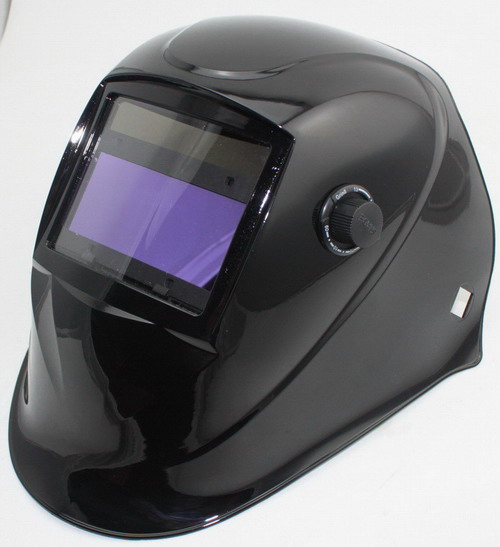

H22-718G Helmet
Characteristic:
Large view area 100x53mm(3.94"x2.09")
4 independent arc sensors
Variable shade from 5-8 and 9-13 so is suitable for all welding jobs
With grinding function
Magnify /Cheat Lens capable
New headgear features unsurpassed fit and durability
Enhanced features offer superior value
| H22-718G | |
 | |
 | |
| Optical Class | 1/1/1/2 |
| Filter Size | 110x90mm(4.33x3.54") |
| Viewing Area | 100x53mm(3.94x2.09") |
| Arc Sensor | 4 |
| Light State | 4 |
| Dark State | Variable Shade 5-8/9-13 |
| Shade Control | External |
| Power On/Off | Fully automatic |
| Sensitivity Control | Low-High,Internal Stepless |
| Switching Time | 1/30,000s |
| Delay Time | 0.1-1s, Internal Stepless |
| Grind | External |
| Low Battery Indicator | Yes |
| Power Supply | Solar cell with replaceable lithium battery |
| UV/IR Protection | Up to shade 16 |
| Operating Temp. | -10°C~+55°C(14°F~131°F) |
| Storing Temp. | -20°C~+70°C(-4°F~158°F) |

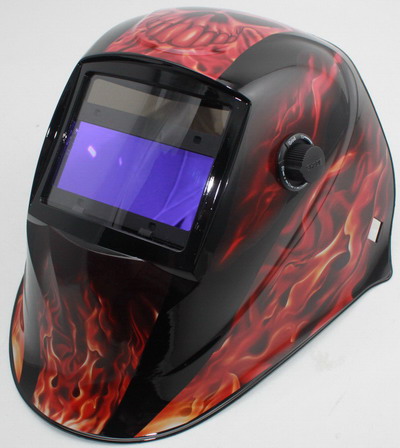

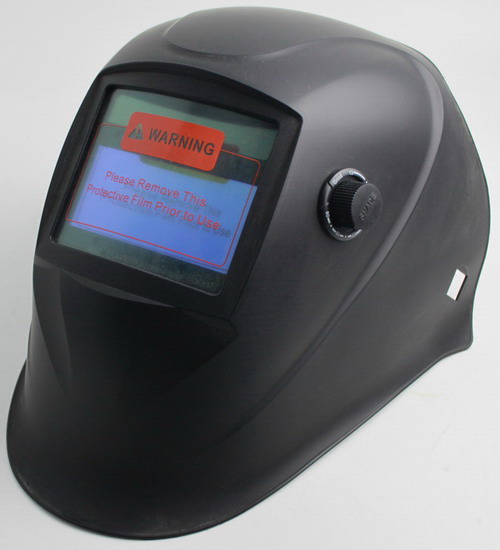

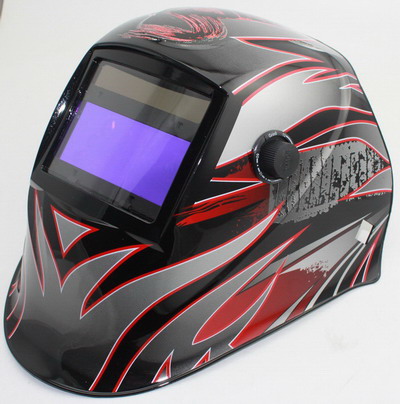

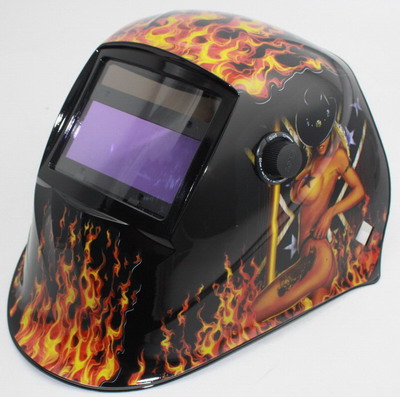

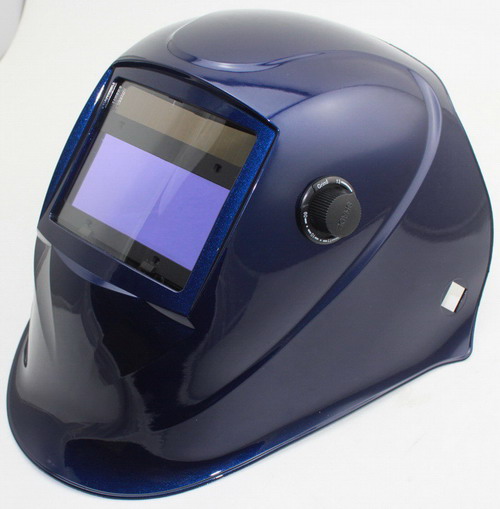

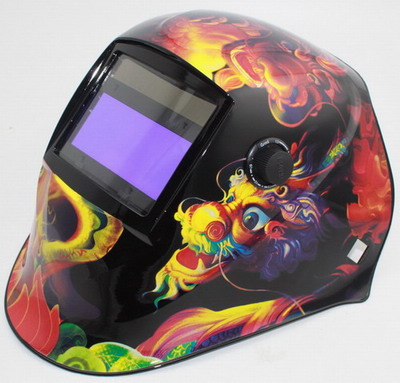

More images:
 |  |  |  |
 |  |
